Jiangsu Dishunhong New Energy Co., Ltd. focuses on the R&D, production, and sales of lithium batteries for electric vehicles, providing safe and reliable new energy power solutions.

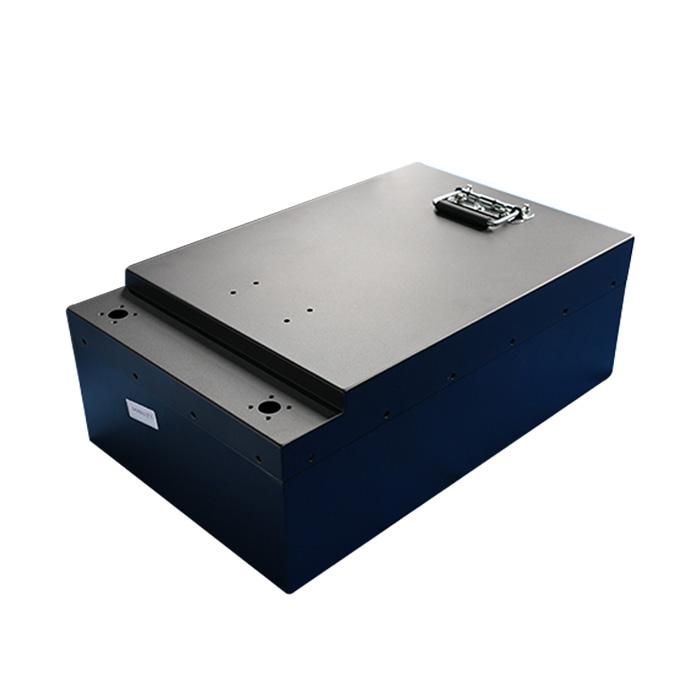

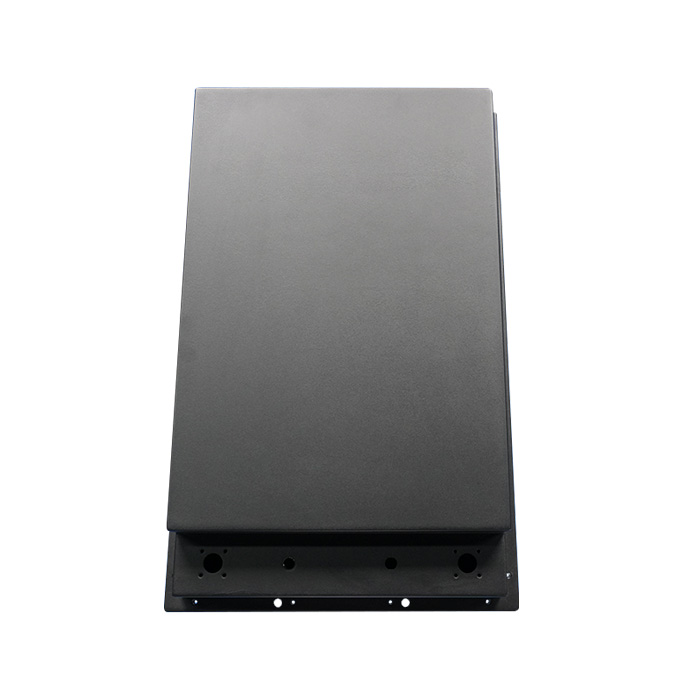

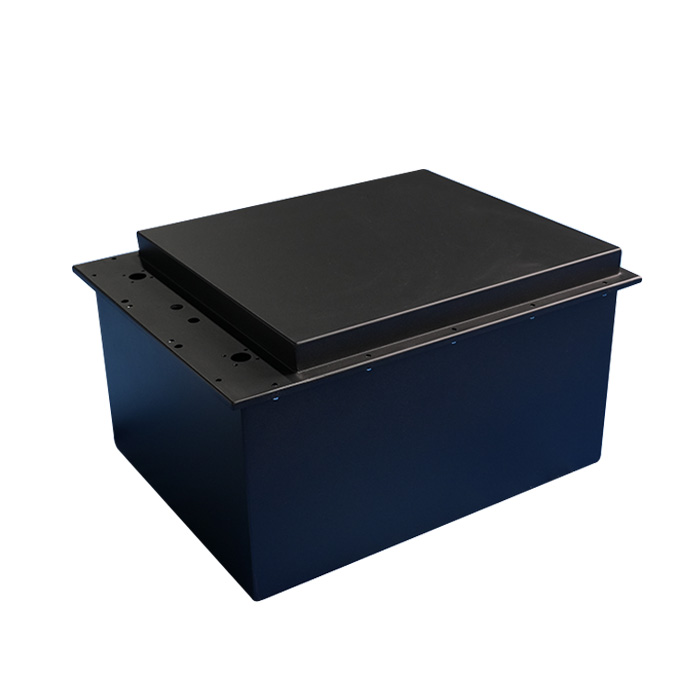

Material Handling Batteries are mainly used in forklifts, AGVs, and other similar applications.Material Handling Batteries voltage include 24V/36V/48V/72V/80V with capacities ranging from 140Ah to 920Ah. These lithium-ion batteries feature a strong mechanical structure and high IP-rated design to withstand vibration and impact, enabling durable bulk material handling solutions with rapid charging, low leakage current, and long calendar and cycle life.Based on different application requirements for voltage and capacity, the lithium-ion Material Handling Battery supports series configurations to increase operating voltage, making it suitable for custom material handling solutions across diverse industrial scenarios.Material Handling Batteries support I2C/SMBUS/CANBUS/RS484/RS232……communication, provide high accuracy fuel gauge to judge battery pack SOC, and support warming function to charge in low-temperature ambient.
| 24V | 36V | |||||
| Model | B.LIFT-24230 | B.LIFT-24280 | B.LIFT-24460 | B.LIFT-24560 | B.LIFT-36560 | B.LIFT-36920 |
| Dimension | 19.1×7.1×14.6inch (485x180x370mm) | 25.0×7.1×14.6inch (634x180x370mm) | 19.1×14.4×14.6inch (485×365x370mm) | 25.0×14.4×14.6inch (634x365x370mm) | 25.0×14.4×17.4inch (634×365x440mm) | 38.4×14.4×17.4inch (975x365x440mm) |
| Weight | 136 Ibs(62kg) | 163Ibs(74kg) | 207 Ibs(94kg) | 260 Ibs(118kg) | 379 Ibs(172kg) | 511Ibs(232kg) |
| Available Capacity | 230 Ah(5.88kWh) | 280 Ah(7.16kWh) | 460 Ah(11.77kWh) | 560 Ah(14.33kWh) | 560 Ah(21.50kWh) | 920 Ah(35.32kWh) |
| System/Nominal Voltage | 24V/25.6V | 36V/38.4V | ||||
| Continuous Charge Current | 150 A | 250A | 250A | 250A | 250A | 250A |
| Continuous Discharge Current(A) | 150A | 250A | 250A | 250A | 250 A | 250A |
Showcasing successful projects with our partners, demonstrating the reliable performance and proven quality of our products in real-world applications.
