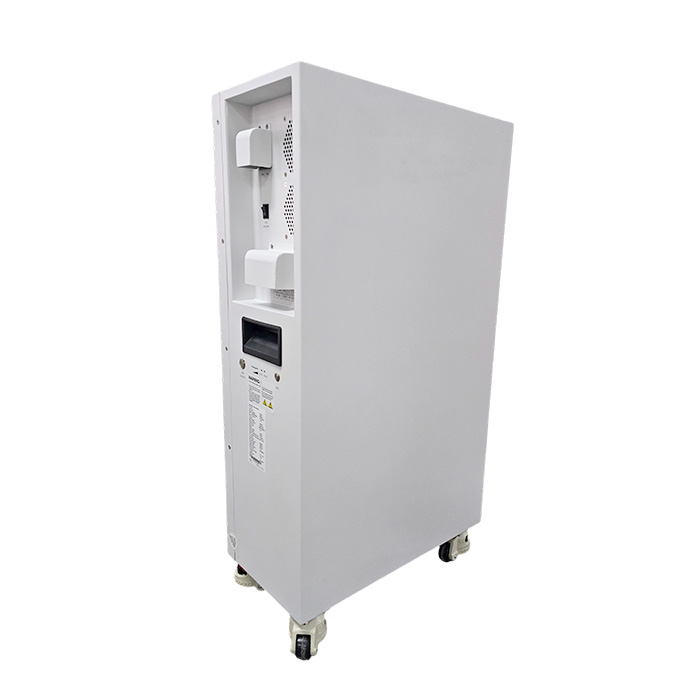

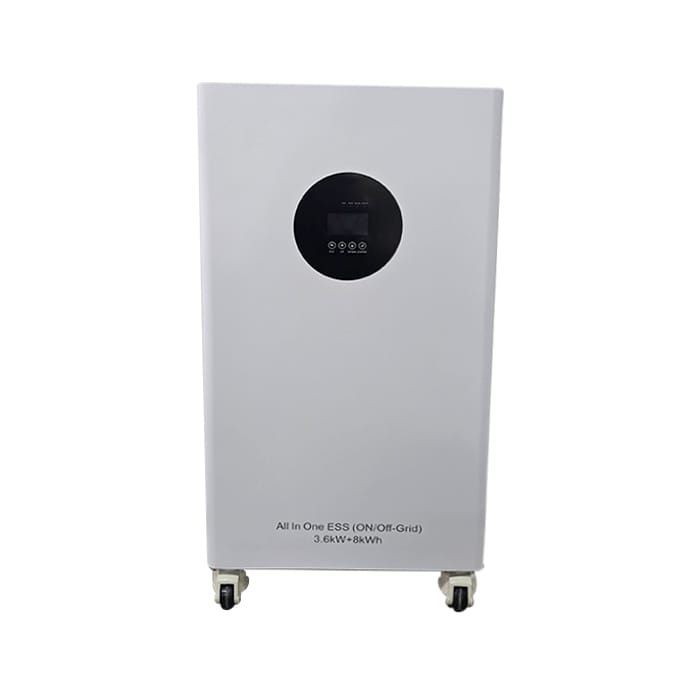

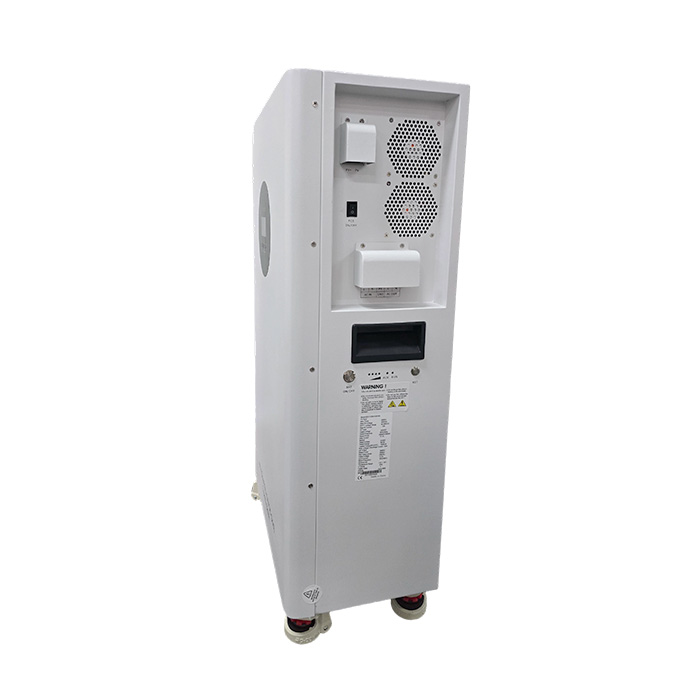

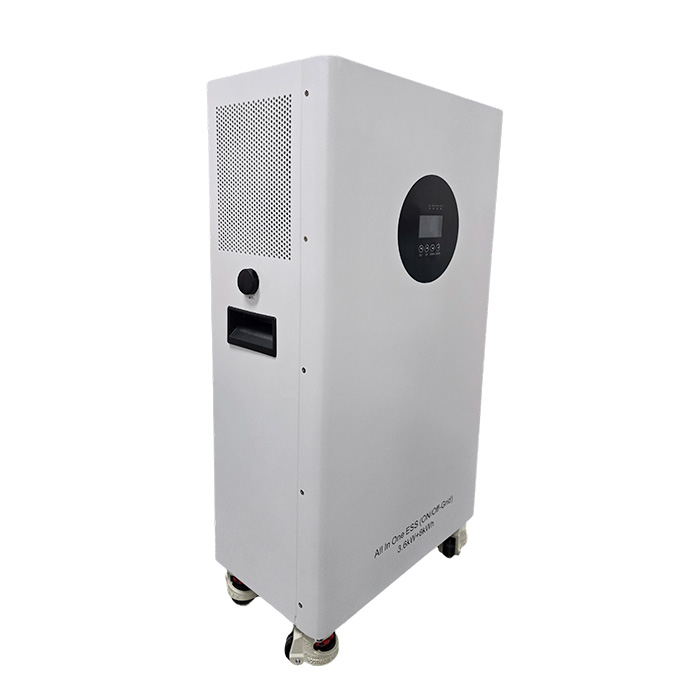

| Model | ESS 3.6KW+8KWH |
| AC Input | |
| Rated Input Voltage (VAC) | 208/220/230/240;L+N+PE |
| Voltage Range(VAC) | 90~280±3(normal mode);170~280±3(UPS mode) |
| Frequency(Hz) | 50/60(Auto Adaptive) |
| AC Output | |
| Rated Capacity(kW) | 3.6 |
| Surge Power(kVA) | 5.7 |
| Voltage(VAC) | 208/220/230/240 |
| Power Factor(PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time (ms) | 10 |
| Wave Form | Pure Sine Wave |
| Overload Capacity(Battery Mode) | 60s@102%~110%;10s@110%~130%; 3s@130%~150%;0.2s@>150%; |
| Max.Efficiency(Battery Mode) | 92.7%@24VDC |
| Charger(PV/AC) | |
| Solar Charger Type | MPPT |
| Max PV input current/power | 18A/5000W |
| Operating Voltage Range (VDC) | 40~450 |
| Max PV Open Circuit Voltage(VDC) | 500 |
| Max PV Charge Current(A) | 100 |
| Max AC Charge Current(A) | 100 |
| Max.Charge Current(PV+AC)(A) | 100 |
| Battery | |
| Nominal Battery Voltage | 25.6VDC |
| Rated Energy | 8KWh(0.2C,25℃) |
| Usable Energy(90%DOD) | 8KWh |
| Max.Charge/Discharge Current | 75A/150A |
| Operation Voltage Range | 20Vdc~29.2Vdc |
| Operation Temperature | -10℃~+50℃ |
| Interface | |
| r e v e a l | LCD |
| c o m m u n i c a t i o n | USB |
| Monitoring | WiFi |
| General Data | |
| Ingress Protection | IP20 |
| Operating Temperature | -10 ℃~50℃ |
| Relative Humidity | 5%～95%(Non-condensing) |
| Storage Temperature | -15 ℃~60℃ |
| Max.Operating Altitude | 4000m(Derating above 1000m) |
| DIMENSION | |
| LxW×H(products size,mm) | 440*246*760mm |
| L×W×H(package size,mm) | 520*436*890mm |
